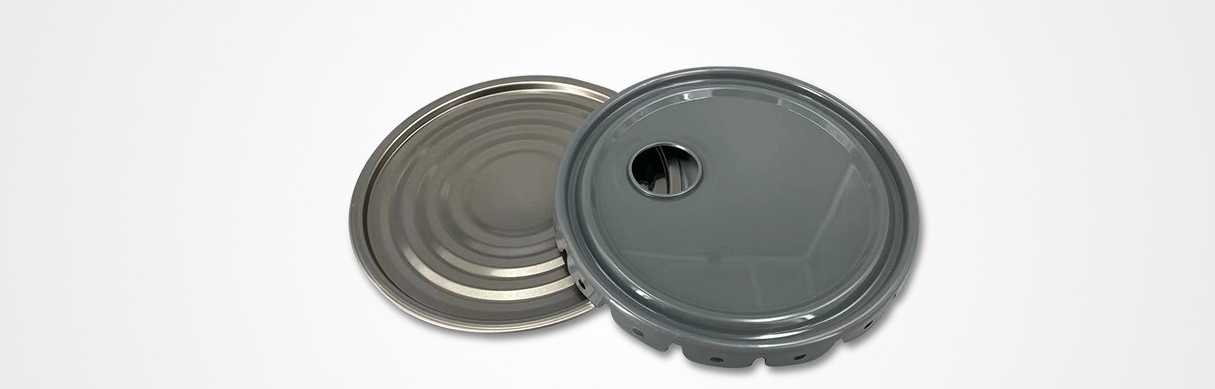

The lock lid and lock ring lid can be perfectly matched with the conical pail with the larger top while smaller bottom, which provides an effective solution for the pail products transportation. With our patented technology, we have made a precision sealing for all pails.
OEM: The color, size, finish and sealing can all be customized.
Use: 5 Liter - 35 Liter metal bucket / paint bucket.
5 Liter - 35 Liter
193mm - 380mm
Adjustable
Tinplate
0.28mm - 0.55mm
Standard Lock lid, Deep drawing type lid
ISO 9001
Accept Customization
UN IA1009
Lacquer, Antirust Oil, Epoxy Resin
CMYK And Pantone
Paint
Adhesives
Liquid Waterproofing Membranes
chemical industry
Other Building Products
| Capacity for pail | Inside Diameter | Outside Diameter | Edge concave height | Edge convex height | Depth | Eva sealing ring |
|---|---|---|---|---|---|---|
| 5 Liter / 6 Liter | 193mm | 195mm | 11mm | 25mm | 7.5mm | Thickness - 5.5mm Width 8.8mm |
| 10 Liter | 245mm | 247mm | 11mm | 25mm | 7.5mm | Thickness - 5.5mm Width 8.8mm |
| 15 Liter / 18 Liter / 20 Liter / 25 Liter | 297mm | 300.5mm | 11mm | 26mm | 8mm | Thickness - 5.5mm Width 8.8mm |
| 35 Liter | 325mm | 326mm | 11mm | 26mm | 8mm | Thickness - 5.5mm Width 8.8mm |
| 50 Liter | 380mm | 382mm | 11mm | 26mm | 8mm | Thickness - 5.5mm Width 8.8mm |
