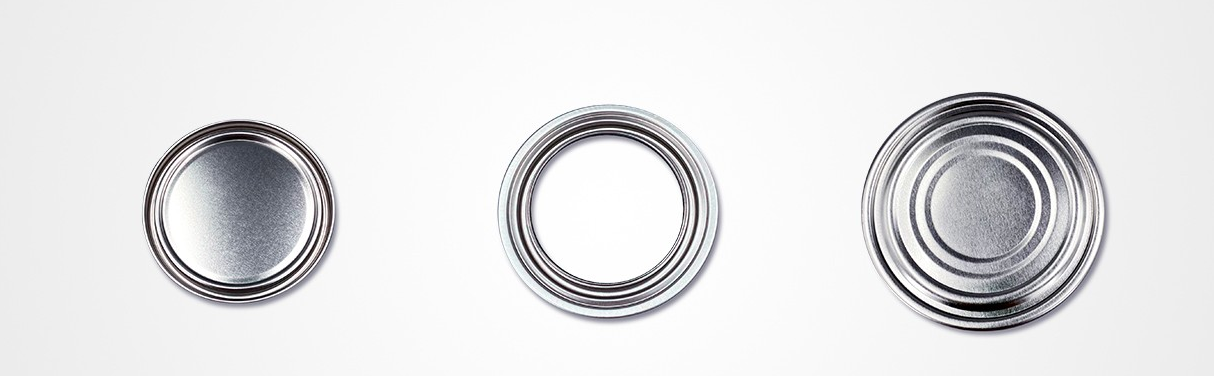

Lever Lid Can

Plug & Ring & End

Our can components ensure smoothest and easiest operation with excellent tooling properties. Providing a better solution for the sealing and use of round cans from 0.1 to 5 liters, we have built automatic production lines for shearing, printing and punching. Due to high efficiency and machinery control ability, we can make the lid in a very precise while profitable way. Based on the processing lines and mold design team, the specific demands on the coating, color, thickness and rib can all be met.

OEM: We offer various options for lacquering such as vinyl, epoxy or organosol based lacquer and water or oil based compound lining to suit your requirement.

Use: Paint can, Round can.

Product Information

Diameter:

65mm - 178mm

Material:

Tinplate

Thickness:

0.20mm - 0.25mm

Lid Style:

Single Lid / Triple tight lid

Certificate:

ISO 9001

Design:

Accept Customization

UN approved:

UN IA1009

Coating:

Lacquer, Antirust Oil, Epoxy Resin

belding line:

with belding line or not

Printing:

CMYK And Pantone

(Cooperate with China's top printing factory to restore color)
Applications:

Paint
Adhesives
Liquid Waterproofing Membranes
chemical industry
Other Building Products

Product Specification

Size Thickness Diameter Chuck Diameter Shape Tightness Coating Available
200#0.18mm - 0.23mm50mm49.27mmRoundSingle & Triple tightClear / Gold / White Lacquer / Gray Coating / Buff Coating / Color Printing
202#0.18mm - 0.23mm52mm51.99mmRoundSingle & Triple tight
209#0.18mm - 0.23mm62mm61.90mmRoundSingle & Triple tight
211#0.18mm - 0.23mm65mm65mmRoundSingle & Triple tight
214#0.20mm - 0.24mm73mm72.90mmRoundSingle & Triple tight
300#0.20mm - 0.24mm76mm75.60mmRoundSingle & Triple tight
305#0.20mm - 0.24mm80mm79.98mmRoundSingle & Triple tight
307#0.20mm - 0.24mm85mm84.50mmRoundSingle & Triple tight
401#0.20mm - 0.24mm99mm98.60mmRoundTriple tight
404#0.20mm - 0.24mm105mm105mmRoundTriple tight
404#0.20mm - 0.24mm108mm108mmRoundTriple tight
502#0.20mm - 0.24mm127mm127mmRoundTriple tight
603#0.20mm - 0.24mm153mm153mmRoundTriple tight
610#0.20mm - 0.24mm165mm165mmRoundTriple tight
700#0.20mm - 0.24mm176mm176mmRoundTriple tight
